FreedomEdge Syringe Infusion System

Proud to be the UK’s supplier of the Koru Freedom® system product range, including the FreedomEdge Syringe Infusion System. This easy-to-use, portable, compact infusion solution is designed to accommodate BD 20 and 30ml syringes and immunospecific syringes. Requiring no batteries or electricity, allowing for complete flexibility and self-sufficiency for patients. Ideal for smaller, often repeated applications. Complete with integrated safety measures, the FreedomEdge operates at a constant safe pressure, which automatically decreases the flow rate if there is an increase in resistance during infusion.

Infuse in 3 easy steps

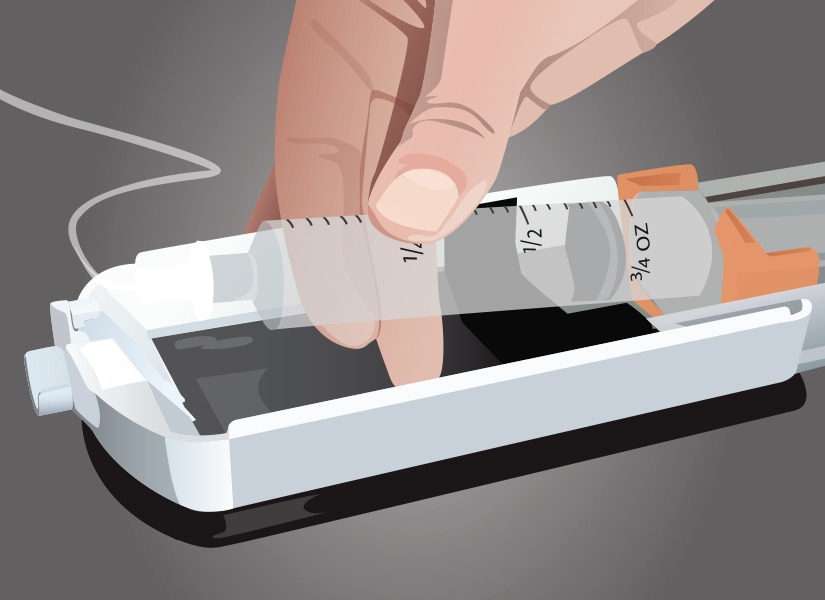

Load

Wind large knob back black tab is at end of it’s track. Load prepared 20ml or 30ml syringe

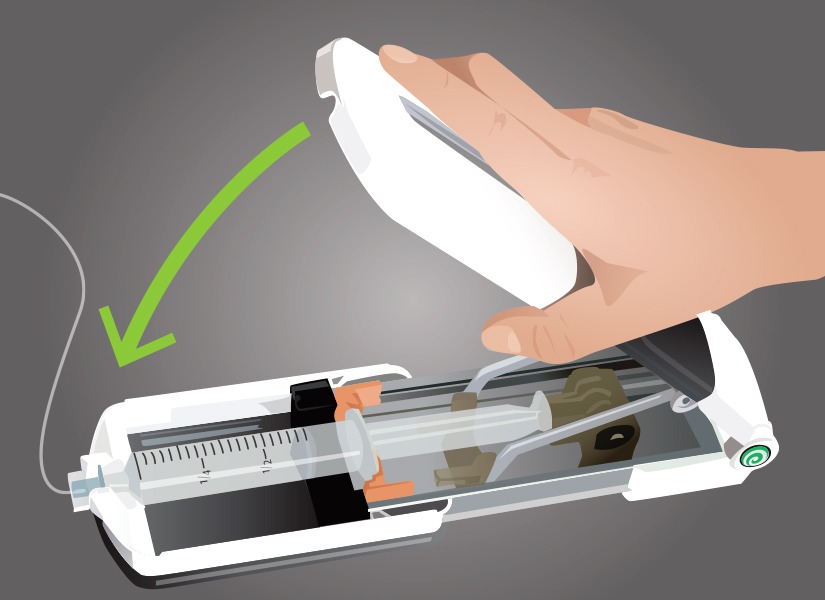

Close

Close top lid to start the infusion.

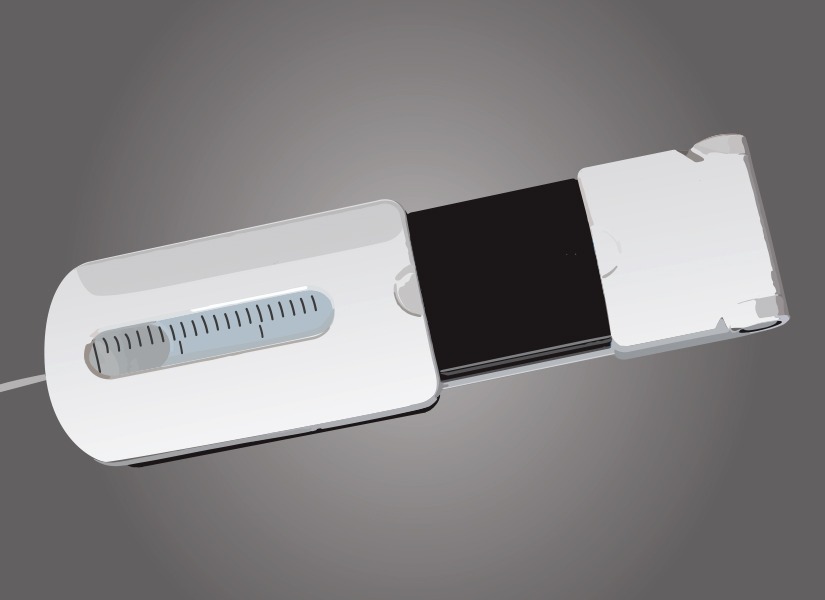

Go!

Check infusion using progress window.

FreedomEDGE^® Administration Step-by-Step Instructions

Watch this 6-minute complete training videos of a home subQ infusion with the FreedomEDGE^® Syringe Infusion System. More videos below.

Infusion Preparation

FreedomEDGE® Preoperation Instructions

Before starting your infusion, it is recommended that you check the functionality of your syringe driver. To do so, follow this quick video to ensure your pump will run properly.

Preparing Your Supplies & Medication

Follow these quick steps to prepare your supplies and medication prior to beginning treatment. This information is only provided as a reference. Always refer to the IFU and HCP protocol for your full list of supplies.

Connecting Precision™ Flow Rate Tubing & High-Flo™ Needle Sets

Watch as we show you how to properly connect your Precision™ Flow Rate Tubing and High-Flo™ Needle Set to the medication syringe. This information is only provided as a reference. Always refer to the IFU and HCP protocol for your full list of supplies.

Starting Your Infusion

How to Manually Prime Tubing

To manually prime the tubing lines by hand, follow these steps.

Preparing Your Infusion Sites

This video gives you suggestions on selecting your sites, knowing what needle length to use and the steps to follow when prepping your infusion sites.

Loading Syringe into the FreedomEDGE®

Follow this quick tutorial on how to properly load and unload a BD 20 and 30 ml syringe into the FreedomEDGE^® Syringe Driver.

During Your Infusion

Here are some things to keep in mind during your infusion with your Freedom60^® or FreedomEDGE^®.

Using Multiple Syringes

Watch how to switch out syringes if using more than one for your infusion.

End of Infusion

Finishing Your Infusion

Learn how to know when your infusion is complete and how to successfully remove the syringe from the FreedomEDGE^® syringe driver.

Cleaning Procedure for the FreedomEDGE®

Watch as we show you how to properly clean your syringe driver after use.

FreedomEdge® Key Features:

Quality assured

Made in the USA with highest level of quality control for defect-free product. No product maintenance needed.

Safe constant pressure

Highly accurate constant pressure pump for safe delivery. Maintains pressure of 13.5 psi.

DynEQ™ (Dynamic Equilibrium)

If pressure in sites increase, the system immediately responds by automatically slowing down.

Ideal for all users

Maximum simplicity for all users – small hands, limited dexterity & limited strength.

Easy to use & learn

No controls – just load, close & go!

Fits 20ml & 30ml syringes

Easy to handle and purge of air. Can be filled from 1ml to 30ml.

Progress window

Easy to check infusion progress.

Silent operation

Convenient and for patients – no unnecessary alarms & noise.

Portable

No batteries or electricity needed. Comes with a travel pouch to promote patient independence.

How can I tell if FreedomEdge® is working and that I am receiving my infusion?

Write down the time the infusion started and verify that you are using the correct control rate tubing and syringe recommended by your healthcare provider. Then, watch that the syringe plunger moves in accordance with your infusion time. If you expect dose to take 1 hour, then after 15 minutes, 1/4 of your dose should be complete. If there is any doubt, please ask your healthcare provider.

How can I find my best infusion sites?

Simply time your infusions! Note how long the first half of your dose takes, and then the second half. Compare the two times. If the second half takes longer, you may be able to find sites that accept the drug more easily. If the two times are just about equal, it usually means your sites are accepting the drug well, and the site pressure is not increasing over the duration of your infusion.

What if I want to administer a large or smaller amount of fluid?

If a dose is larger than 30ml, you can load an additional syringe using the same tubing and needle set. For smaller volumes, the pump system automatically adjusts to whatever amount is contained in the syringe. We also offer the FREEDOM60^® pump, which has the same performance as FreedomEdge^®, but for 60ml syringes.

What if i want my infusion to go faster?

Speak with your healthcare provider to learn more about all of the Precision Flow Rate Tubing™ choices available, and to see if a change is appropriate.

How do I clean the FreedomEdge®?

Refer to the Instructions For Use for information on how to clean the FreedomEdge™.

Can the FreedomEdge® be used at high altitudes, such as in aircraft?

Yes. It can be used in any position, at any altitude.

Can the FreedomEdge® be used for applications other than SCIg?

Yes. The FreedomEdge^® can be used to administer most intravenous and subcutaneous medication that will fit in a 20ml or 30ml syringe.

Does the FreedomEdge® need maintenance?

The FreedomEdge^® is designed to operate without scheduled maintenance. If you ever experience a pump problem, immediately advise your healthcare provider who can arrange for a replacement if necessary.

Do you offer a carrying bag for the pump?

Yes. If you would like a pouch, please contact the provider who sent you your pump.
